Simple Operation Cylinder Drying Machine With Steam Trap / Drum / 10-100m/Min

الصين Simple Operation Cylinder Drying Machine With Steam Trap / Drum / 10-100m/Min المزود

صورة كبيرة :  Simple Operation Cylinder Drying Machine With Steam Trap / Drum / 10-100m/Min

تفاصيل المنتج:

Place of Origin: CHINA
اسم العلامة التجارية: VIROCK
إصدار الشهادات: ISO9001
Model Number: VK

شروط الدفع والشحن:

Minimum Order Quantity: 1 SET
الأسعار: NEGOTIABLE
Packaging Details: polywood case
Delivery Time: 60-90 days
Payment Terms: L/C, T/T, D/A
Supply Ability: 4 sets per month
Contact Now
مفصلة وصف المنتج
Designed Machine speed: 10-100m/min Condition: Brand new
Automatic Grade: Automatic Warranty: 1 year
After-sale service: Available Drive mode: Full inverter controlled
Inverter: Mistubishi No. of cylinder unit: As required
Cylinder drum: coated with Teflon

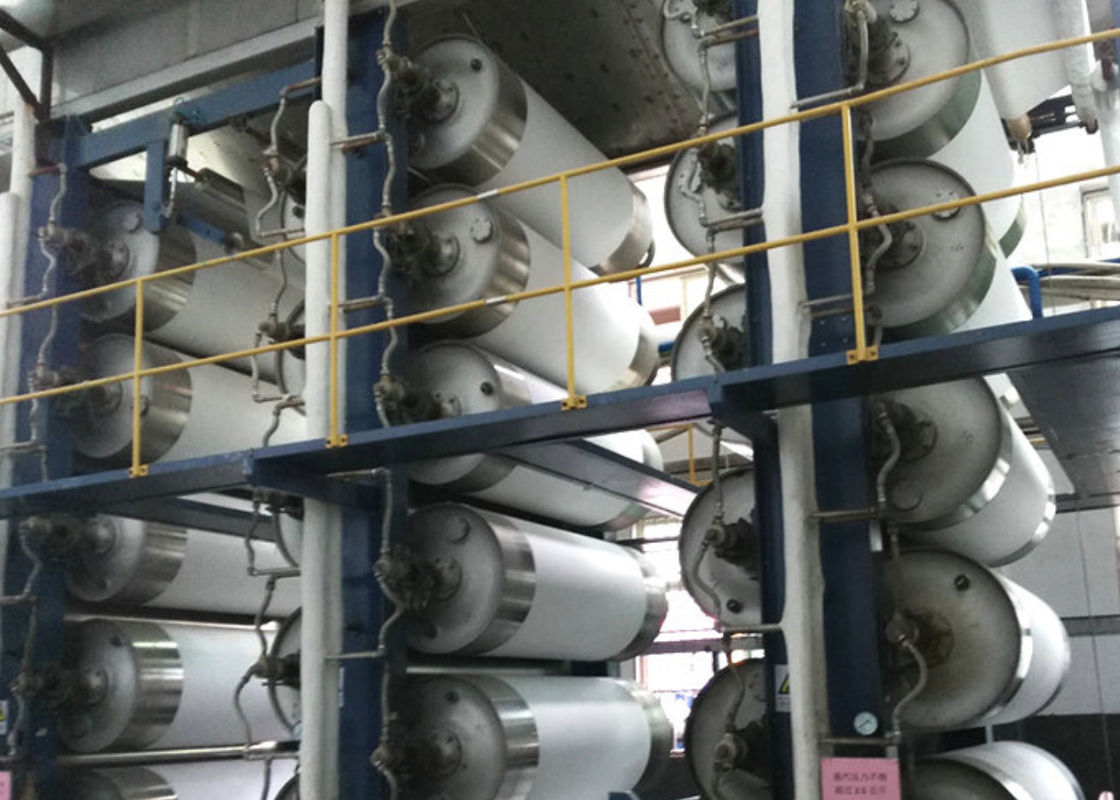

Simple operation Cylinder Drum Dryer , with steam trap , drum coated with Teflon





1. Machine applications:

The moisture is evaporated as the fabric passing over the steam heated cylinder dryers. The cylinder dryer can be used in continuous operation with finishing plants, or as separately operating dryer for other treatments. Usually one or two stacks in vertical arrangement, 6/8/10/12 cylinders per stack.





2. Process:

Open width entry --- Infrared center device ----  Padder --- Tension applicator --- Cylinder drum unit --- Water-drum cooling  ---- End section --- Plaiting.







3. Technical data:



Working width: 1200mm - 3400mm

Heat source: steam

Unit of dryer: Optional

Cylinder dia.: 570mm

S.S sheet gauge 2.5mm, grade 304-.

Flage plate material: carbon steel, thickness: 8mm

M.S shaft dia.: 60mm

Drum ring material: carbon steel

Cylinder coated with Telfon: 0.05mm

Frame width: 376mm





Simple Operation Cylinder Drying Machine With Steam Trap / Drum / 10-100m/Min
